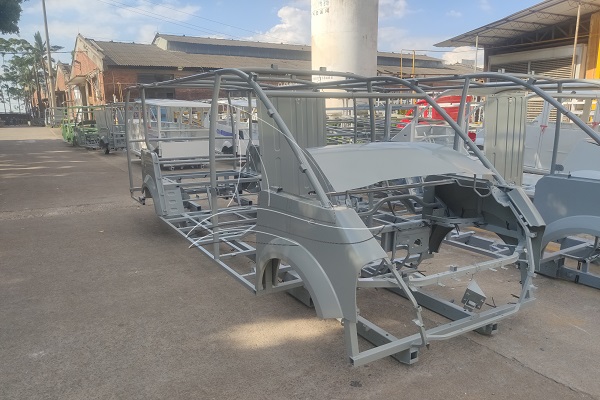

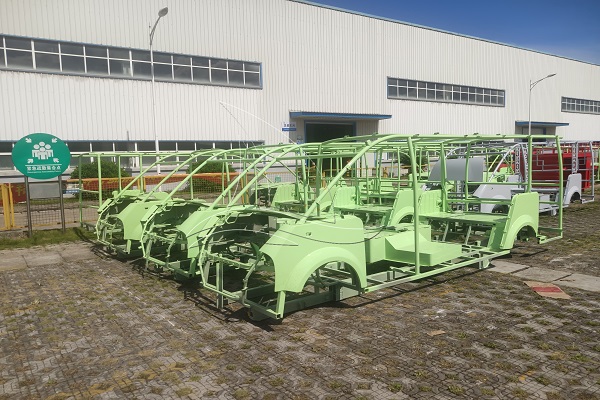

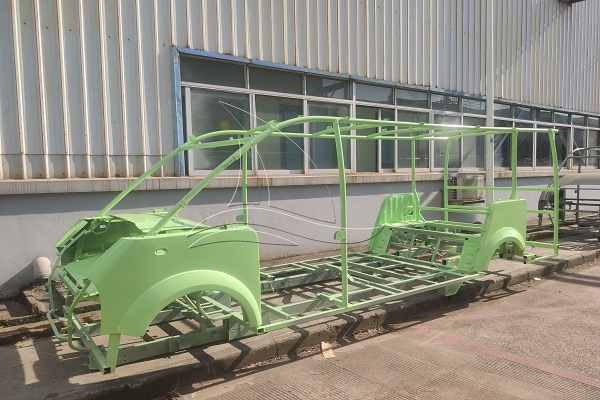

Electrophoresis Process For Sightseeing Car Body Paint

1、Degreasing

This step is to remove oil and degrease, using a degreasing agent containing surfactant to degrease the metal work piece twice by soaking and spraying: simple degreasing and deep degreasing respectively. And the purpose is to remove dirt and grease from the surface.

2、Washing

We use water to wash away the alkaline degreasing solution remaining on the surface, because if it is not cleaned thoroughly, it will affect the adhesion of the subsequent electrophoretic paint.

3、Phosphating

Phosphating is to form a uniform phosphating film. Besides, it can improve the adhesion, rust and corrosion resistance and salt spray performance of electrophoretic paint films.

4、Washing

This water washing is to wash away the remaining phosphating liquid and phosphating slag.

5、Pure Washing Before Electrophoresis

This step is to prevent impurity ions from entering the electrophoresis tank.

6、Drain

After washing, it is necessary to drain the surface liquid to avoid contaminating the electrophoresis tank.

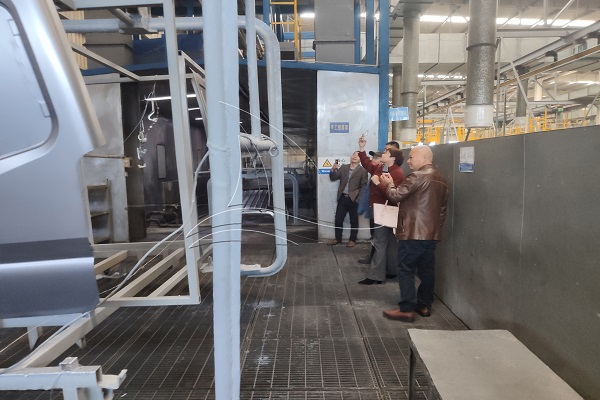

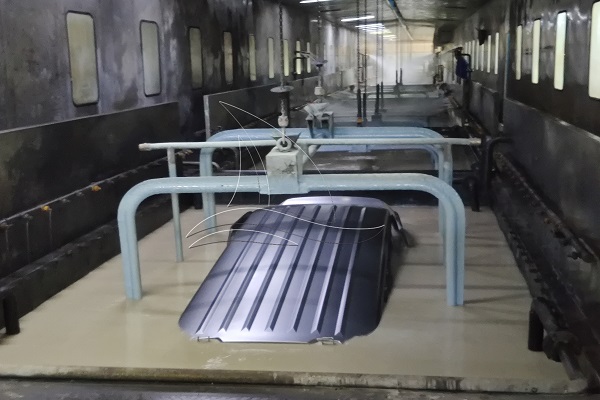

7、Electrophoresis

This step is the key step – electrophoresis. Under the action of electric current, electrophoretic paint adheres to the working surface and inner cavity, which can improve corrosion resistance.

8、Washing

Cleaning the surface of the workpiece can make the electrophoretic paint film smooth and flat. And this step needs to be performed twice. In addition, we also need to recycle the electrophoretic paint on the surface of the workpiece for next use.

9、Pure Washing After Electrophoresis

That is to prevent impurity ions from adhering to the surface of the workpiece, and then affect the adhesion of the electrophoretic paint.

10、Drain

Draining again after electrophoresis is to drain away the residual liquid on the surface of the work piece and the inner cavity.

11、Drying

The purpose of drying is to solidify the electrophoretic paint film. At this step, the electrophoretic process is generally completed.

1、The paint film has uniform thickness and beautiful appearance. So you don’t need worry about its quality and appearance.

2、Strong corrosion resistance. The biggest advantage of this process is its corrosion resistance. So you can use it for a long time.

3、Water-based paint is non-toxic and highly safe. Therefore, it is healthy and safe for people to ride.

4、High material utilization rate, which can reduce costs. And then the price is relatively affordable for you.

5、Reduce waste water discharge and be more environmentally friendly. Because we also recycle the excess materials.

6、Achieve complete automation, which is suitable for large-volume assembly line production and efficient during the production.

7、Multiple washings can ensure the cleanliness of the workpiece surface and prevent contamination.
